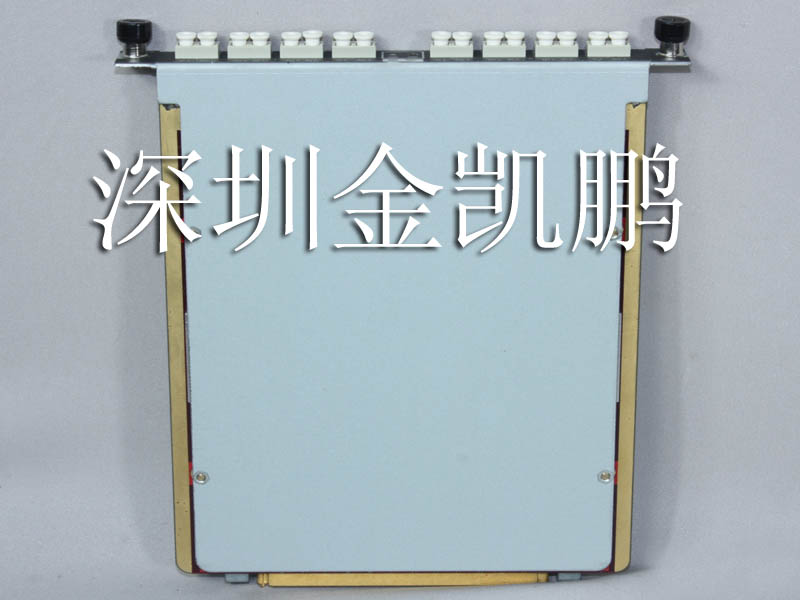

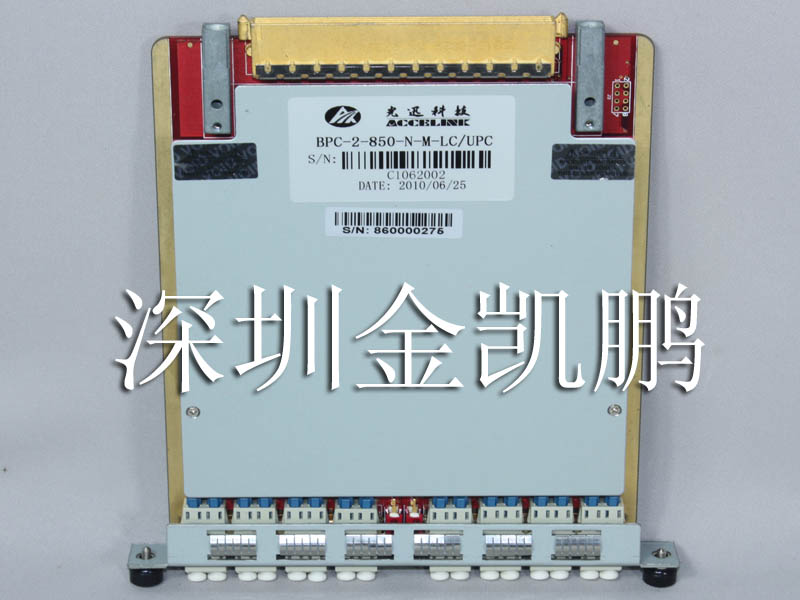

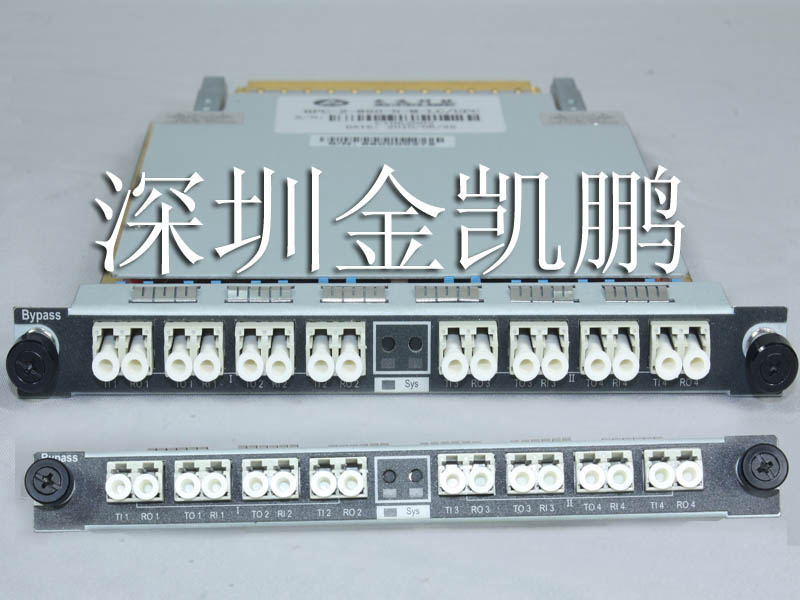

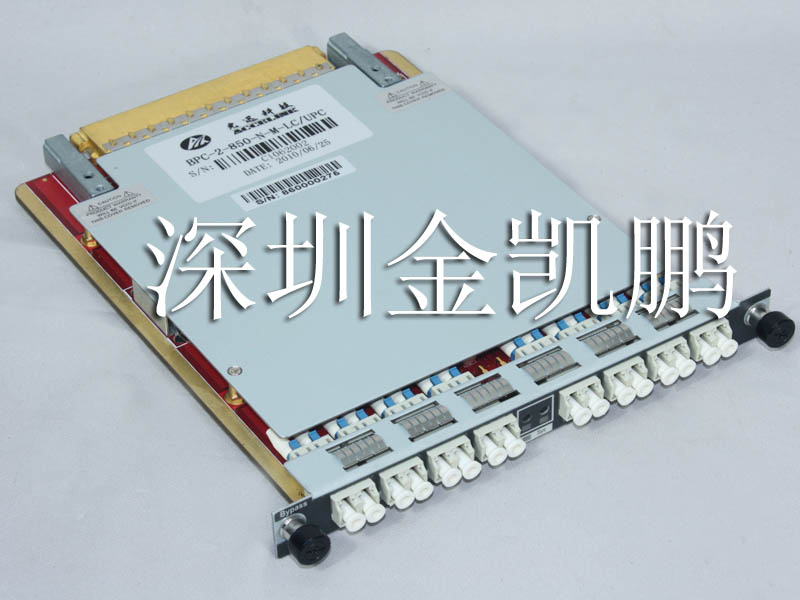

武汉光迅 多模2链路ByPASS卡 BPC-2-850-N-M-LC/UPC
BPC-2-850-N-M-LC/UPC Test Data
武汉光迅 多模2链路ByPASS卡 BPC-2-850-N-M-LC/UPC
Tested LINK：LINK1 Testing Condition：25℃
|
Item |
parameters |
Specifications |
Unit |
|
850nm |
|
1 |
Insertion Loss
(With Connectors) |
TI1→R02 |
3.46 |
dB |
|
TI2→RO1 |
3.25 |
|
RI1→TO1 |
3.01 |
|
RI1→RO1 |
0.35 |
|
TI2→TO2 |
3.10 |
|
RI2→RO2 |
0.28 |
|
2 |
Return Loss |
＞30 |
dB |
|
3 |
Polarization Dependent Loss |
＜0.2 |
dB |
|
4 |
Wavelength Dependent Loss |
＜0.5 |
dB |
|
5 |
Switch Time(Auto) |
＜20 |
ms |
|
6 |
Switch Type |
Non-latching |
|
武汉光迅 多模2链路ByPASS卡 BPC-2-850-N-M-LC/UPC
Tested LINK:LINK2 Testing Condition: 25℃
|
Item |
parameters |
Specifications |
Unit |
|
850nm |
|
1 |
Insertion Loss
(With Connectors) |
TI3→R04 |
3.74 |
dB |
|
TI4→RO3 |
3.63 |
|
TI3→TO3 |
3.22 |
|
RI3→RO3 |
0.18 |
|
TI4→TO4 |
3.60 |
|
RI4→RO4 |
0.10 |
|
2 |
Return Loss |
＞30 |
dB |
|
3 |
Polarization Dependent Loss |
＜0.2 |
dB |
|
4 |
Wavelength Dependent Loss |
＜0.5 |
dB |
|
5 |
Switch Time(Auto) |
＜20 |
ms |
|
6 |
Switch Type |
Non-latching |
|
武汉光迅 多模2链路ByPASS卡 BPC-2-850-N-M-LC/UPC
Others Specifications
|
Item |
Parameters |
Specifications |
Unit |
|
1 |
Operating temperature |
0～+45 |
℃ |
|
2 |
Operation Humidity |
5～95 |
%RH |
|
3 |
Storage Temperature |
-40～+70 |
℃ |
|
4 |
Storage Humidity |
5～95 |
%RH |
|
5 |
Package Dismension |
180.3(L)×144.45(W) ×18.1(H) |
mm |
|
6 |
Power consumption |
﹤2 |
W |
|
7 |
Connector |
LC/UPC |
|
|
