网络分析仪 NP7000
Network Probe WAN protocol test set. In one package, test T1, E1 / 2MB data, ISDN, RS232, RS422, V.35 (NP7000)

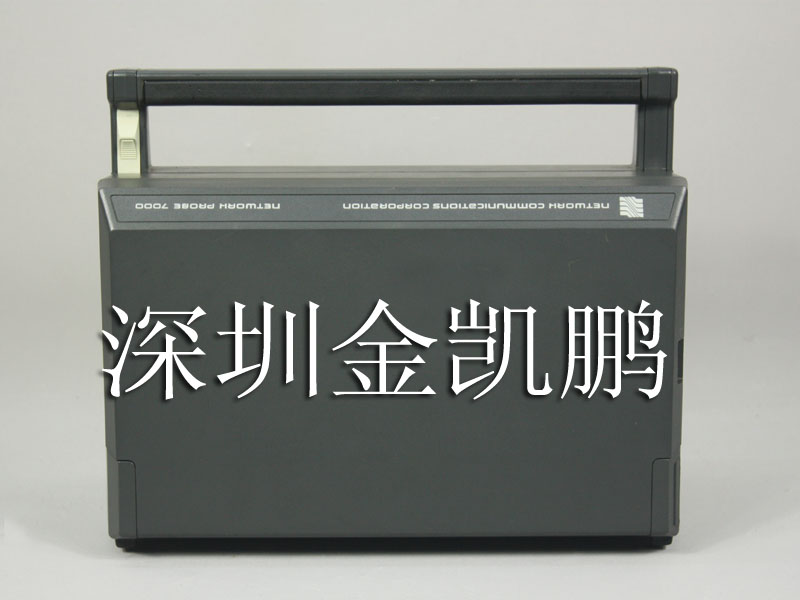

NCC Acquisition Corp NP7000 Network Probe

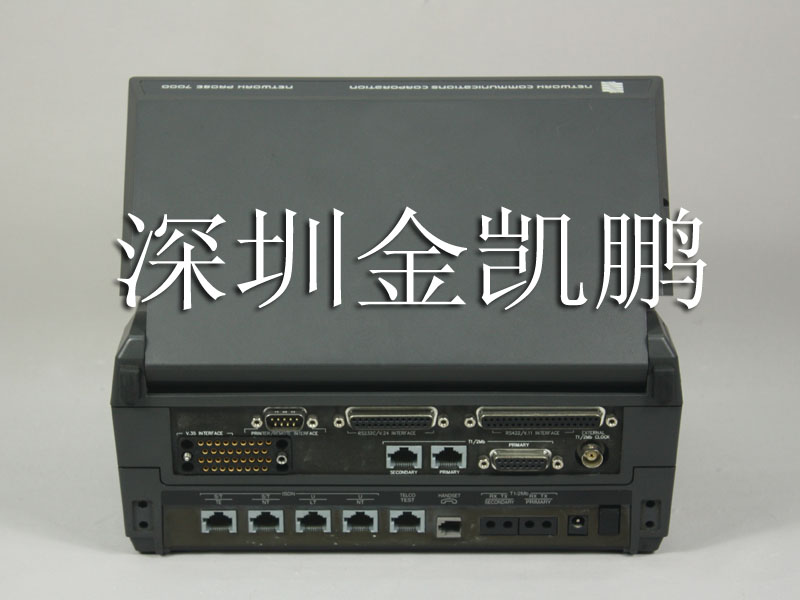

Test Interfaces
• 34 pin V.35 Interface
• 25 pin RS-232C/Mil-188C Test Interface
• 37 pin RS-449/422/423 Test Interface
• 9 pin RS-232C Interface for Serial Printing and Remote Control
• Dual Bantam and RJ-48 T1/E1 Interface Jacks
• 15 pin T1/E1 Interface
• BNC Jack for T1/E1 Clock Input, ISDN Clock input and External BERT Clocking
• RJ-48 jack for use by the speaker monitor input and for tone generator signal injection input/output
• Handset Jack for Voice Communications
• ISDN (S/T & U) Interface Jacks
Protocol Analysis Options
• PPP, Frame Relay, SNA, X.21, X.25, Baudot, DDCMP, ISDN (Q.921/Q.931), LAPD X.25, SS7/SS#7/IS-41
• T1 / 2.048 MHz / CEPT / E1 Transmission Tests
• US Standard T1-1.544 Mbps
• CCITT Standard 2.048 Mbps
• Dual T1/E1 Receivers and Transmitters
• Clocking: Recovered, External, Internal
• Selectable Line Buildout: O dB, -7.5 dB, -15 dB
• Automatic Line Buildout: O to -37 dB
• Selectable Line Equalization: 0-133 Feet, 133-266 Feet, 266-399 Feet, 399-533 Feet, 533-655 Feet
• Line Codes: AMI, HDB3, B8ZS, B7 and Auto Configure
• Framing: Unframed, D1D, D2, D3, D4, ESF, CEPT 2M (E1), Framed 2M , Multiframed, and Auto Configure
• Line Terminations: Terminated (US 100 ohms, G.703 at 75 ohms or 120 ohms), Bridged ( 1000 ohms), Drop/Insert Terminated, Drop/Insert Bridged
• BERT Test Patterns: Mark, Space, 1:1 (Alt), 1:3, 1:7, 2:8. Yellow Alarms, Blue Alarms, Red Multi-frame Alarms, 3:24, 63, 511, 2047, QRSS, 2^15-1, 2^20-1, 2^23-1, 2^23-1 with 14 Zero Suppression, 24 bit User Defined Pattern
• CSU Loop Up/Loop Down commands, Smart Jack Loop Up/Loop Down commands
• Time stamped Error Reporting to Disk and/or Printer
• Scripted BERT Testing (User Definable)
• Drop and Insert
• Drop and Insert to RS-232, RS-449, V.35 Interfaces or Any Protocol Analysis Instrument and BERT
• 16K BRITE Card Drop to Q.921/Q.931
• Channel Display (24 or 32 Channel Display)
• 24 T1 or 32 E1 Channels Simultaneously Displayed
• Hex, Binary, status
• Signaling Bit Display
• 24 Channel T1 or 32 E1 Display of Signaling Bits
• Wink Measurements for Response and Duration Times (Intrusive and Monitor Modes)
• Time stamped Signal Bit Capture, 1-24 Channels
Digital TIMS
• Transmission and Measurement of Voice Range Tones via T1/E1 Drop and Insert
• Drop Out for Measurement or Insert to Generate Level and Frequency for Individual T1 Channels or E1 Timeslots
Lead Status Monitor
• Graphics Display: Mnemonical for V.35, RS-422, RS-232
• Alarms: Visual and Audible - Triggered when Selected Lead(s) go on or off
• Baud Rate Frequency Counter on Transmit and Receive Clocks
Data Line Monitor with Auto Configuration
• Monitor/Emulate Internal RS-232, V.35, RS-449/422/423 Interfaces
• Protocols SDLC, SDLC(NRZI), HDLC, BSC, Async, Programmable Sync (1 or 2 character sync), IPARS
• Emulation: DTE and DCE
• Data Capture from Drop and Insert, BRI, PRI, T1 and E1
• Data Monitor and Emulation Rates: 256 Kbps (400 Kbps aggregate)
• Codes Sets: ASCII, EBCDIC, 6-bit Transcode, IPARS, EBCD
• Lead Status: Real Time Status Displayed During Data Monitoring
• Error Checking: CRC-CCITT, CRC-6, CRC-12, CRC-16, LRC and Parity
High Speed Bit/Block Error Rate Tester
• Synchronous and Asynchronous Data
• Full Duplex and Half Duplex (Ping Pong) Modes
• Half Duplex (Ping Pong) Mode is centralized. NP7000 can control up to 32 Remote NP7000's.
• Interfaces: RS-232, RS-449/422/423, V.35
• Receive / Transmit Patterns: 63, 511, 2047, 4095, Mark, Space, and User Programmable Patterns, (63 byte QBF and 24 bit binary), 2^15-1, 2^20-1, 2^23-1, 1:1, 1:3, 1:7, 3:24, QRSS
• Data Block Size: CCITT Specifications - 63, 511, 2047, 4095 Bits
• DDS Loop Patterns Supported : OCU, CSU, and DSU Loop Backs (Latching, Non-latching, Release) During Tl/E1 Drop & Insert
• US Specifications 1000 Bits
• Internally Generated Transmit Speeds (bps): 75, 110, 134.5, 150, 200, 300, 600, 1200, 1800, 2000, 2400, 3600, 4800, 7200, 9600, 12000, 14400, 16000, 19200, 28800, 32000, 38400, 48000 Synchronous and Asynchronous, 56000, 57600, 64000, 72000, 128000, 192000, 256000, 384000, 460800, 512000, 576000, 768000, 1024000, 1152000, 1536000, 2048000, External, Synchronous
• Clocking DCE Source, DTE Source, External
• Character Framing: 5, 6, 7 or 8 Bits, Plus Parity, 1, 1.5, or 2 Stop Bits
• Parity: Odd, Even or None
• Test Duration: 1, 5, 10, 30 Minutes, Continuous
• Lead Status Display
• Alarms: Visual and Audible - Conditional Triggering on Bit or Block Error Counts
• Single or Block Error Inject
VT220 Terminal Emulator
• Programmable function keys (F1-F12) with 20-character answer back message for F1
• Code Sets: ASCII of EBCDIC
• Character framing: 7 or 8 bits per character width and 1, 1.5 or 2 stop bits
• Parity: Odd, Even or None
Remote Control (RS-232C/V.24) Port
• Remote unit is controllable from VT220 or PC (Running VT220 Emulation)
Memory
• RAM: 1 Mb program data storage
• Flash Memory: 1 Mb non-volatile program storage
Data Storage
• Floppy Disk: 2Mb 3.5" diskette with maximum capture buffer size of 600K
• Hard Drive: 40Mb with maximum capture buffer size of 16Mb
Power
• Removable rechargeable Nickel Cadmium (Ni-Cad) battery. AC adapter included.
• Charging time: 3 hours
• Operating time on battery: 1-3 hours nominal (Depends on test functions being performed.)

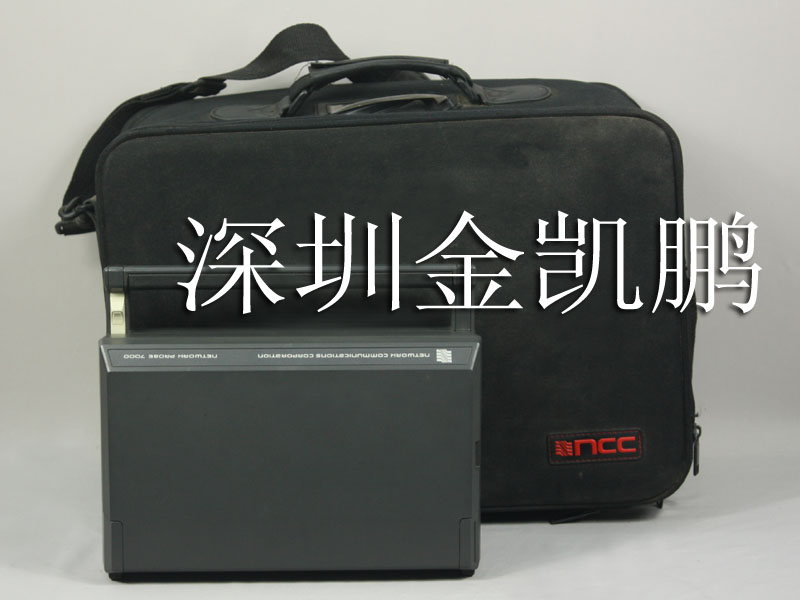

Standard Accessories
• Custom Softcase, Cables, User Manual, System Diskette
• AC Adapter 120V / 12 VDC, 2.5 Amps, (International) 220V / 12 VDC, 2.5 Amps
• Removable Nickel Cadium (Ni-Cad) Battery

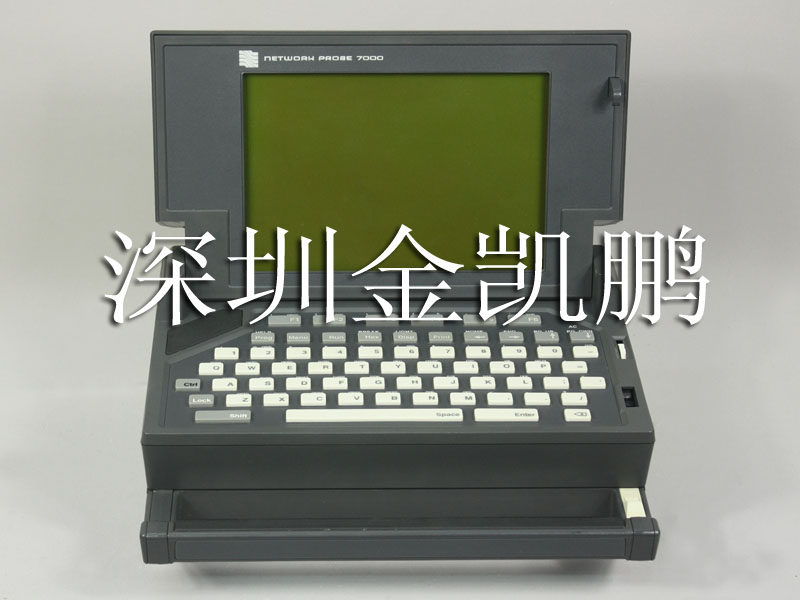

Data Display/Keyboard
• Size: 2000 Characters (80 x 25) supertwist high contrast LCD with backlight
• Keys: 65 Full ASCII Character Set. Unsealed, 10 million keystroke operation life

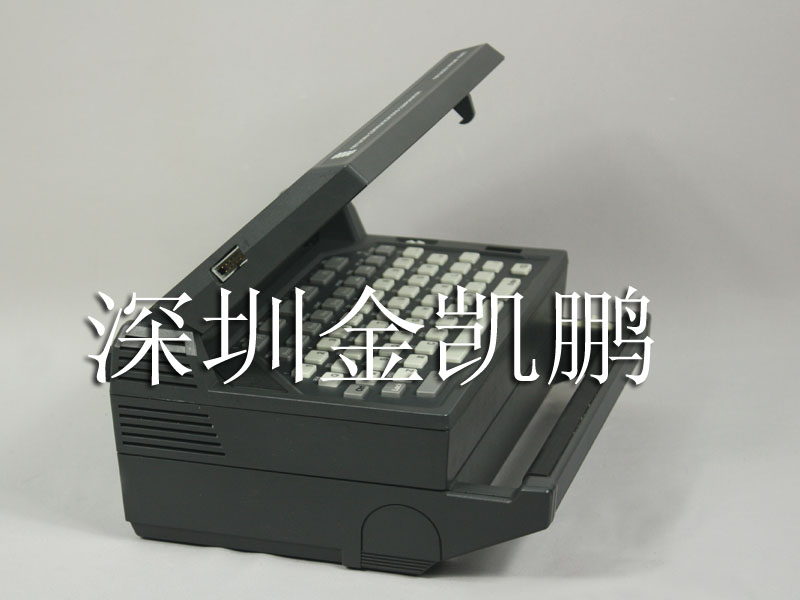

Physical Size
• 9.88" Wide x 4.37" High x 8.5" Deep (25.10 cm x 11.10 cm x 21.59 cm)
• Weight: (Base Unit) 8.5 Pounds (3.86 kg)
Environmental
• Operating Temperature: 10ø C to 50ø C (50ø F to 122ø F)
• Operating Humidity: 10% to 80% Relative Humidity Non-condensing
• Storage Temperature: -30ø C to 60ø C (-20ø F to 140ø F)
• Storage Humidity: 5% to 95% Relative Humidity Non-condensing
Tone/Sweep Generator
• Fixed Tone 100 Hz - 20,000 Hz with selectable output levels, One Hz increments
• Sweep: On screen 21 point frequency Vs level graphs in four ranges; 300 Hz - 3.6 Khz, 100 Hz - 5Khz, 100 Hz - 10 Khz, 100 Hz - 20 Khz
• Receive Accuracy: 100 Hz - 40 Khz +/- 2 dB, 900 Hz - 1025 Hz +/- .3 dB
• Transmit Level Range: 0 dBm to -16 dBm =/- 1 dB at 135 ohms
Dual Channel Oscilloscope
• Display is automatically updated once per trigger point
• Triggering Sources: CH-l, External. Slope: + or - selects the positive or negative excursion of the signal to start the sweep
• Modes: NORMAL sweep, SINGLE sweep
• Maximum Input Voltage: 40 V p-p normal operation protected to 400 V (DC + AC peak)
Digital Volt/Ohm Meter
• Input Impedance: 10 M Ohm
• Capture Buffer Sizes: user selectable or dynamic based on available memory
• Volts AC: 0-400 V (True RMS), 400 mV (100 Hz - 100 Khz), 4 V (100 Hz - 100 Khz), 40 V (100 Hz - 10 Khz), 400 V (50 Hz - 60 Khz +/- 2%)
• Volts DC: -400 V to +400 V +/- 2% dBm: -57 dBm to +54 dBm +/- 2.5%
• Ohmmeter: 0 Ohms to 40 Meg Ohms +/- 2.5%
• Continuity Thresholds: 50 Ohm, 600 Ohm, 1 K Ohm, 10 K Ohm, 1 M Ohm
Speaker Monitor
• Speaker monitor can be used simultaneously with other instruments
• Gain: +2dB, +8dB, +14dB, +22dB, +28dB, +34dB
|
